Alarm setter Plug-in alarm setter SD series BACK

OUTLINE

High quality/high reliability is achieved w/ high-performance electronic parts, running-in of individual part, electric running-in of product under high-temperature environment.
Printed circuit board (B side) is cleaned after parts mounting and processed in coating w/ high moisture resistance varnish and insulation resistance of substrate surface is stabilized and insulation deterioration is prevented.
SDLC-105 SD-HL-105 SDD-HL-105
SDLC-105 , SD-HL-105 , SDD-HL-105


Type
Actual scale type (SD-HL-105)
Actual scale type setter for instrumentation w/ DC voltage or DC current signal as an input and outputs contact signal.


Digital % scale type (SDD-HL-105)
Digital % scale type setter for instrumentation w/ DC voltage or DC current signal as an input and outputs contact signal.

LCD display type (SDLC-105, SDLC-105A)
Setter for instrumentation w/ following characteristics: DC voltage or DC current signal as an input, comparing w/ pre-set signal, output of excess or deficiency in contact signal.
Input full scale is freely set w/ actual scale according to process amount as software compatible type. Also each setting value (operating value, contact delay, etc.) can be freely set and changed. Also input actual scale display and each setting value display is 4 digit display w/ LCD (w/ back light).

SDLC-105
alarm output contact
>> 2 outputs (independent 1c contact)

SDLC-105A
alarm output contact
>> 2 outputs(independent 1c contact)
>> 3 outputs(independent 1a contact or independent 1b contact)
>> 4 outputs (1a contact,one side 2 points common or 1b contact, one side 2 points common).




catalog for alarm setter SD series catalog for all types of plug-in alarm setter SD series
Go to new product news for SDLC-105A catalog.
e_SD series_Rev0.pdf
SIZE:1,400KB
total page no.:13

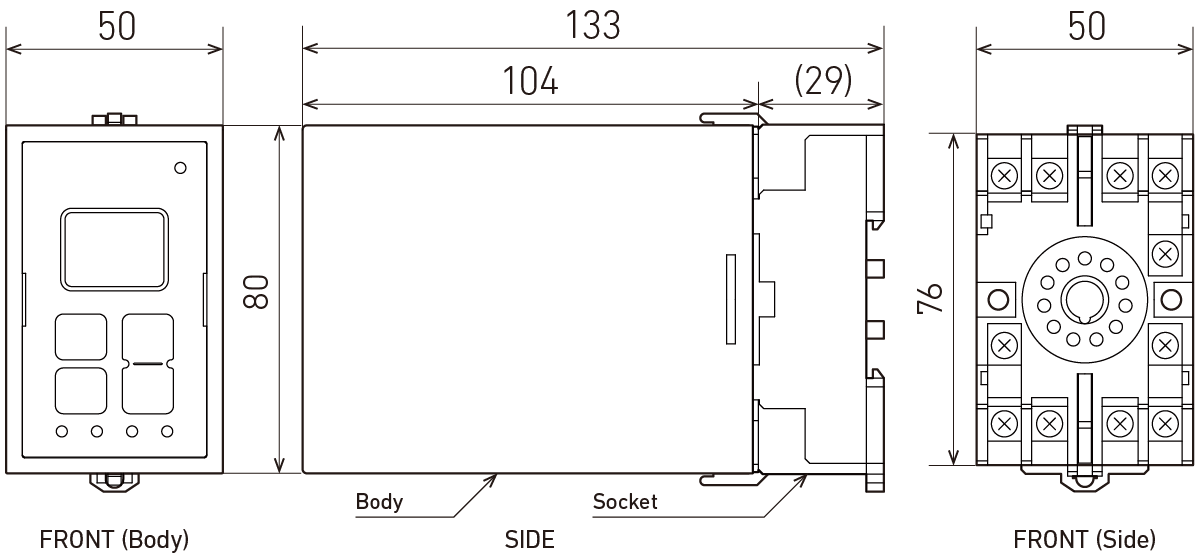

type configuration/ specification/ outline drawing type configuration/ common specification/ outline drawing/ item to specify on purchase
Go to new product news for SDLC-105A catalog.
e_SD kyoutuu_Rev0.pdf
SIZE:229KB
total page no.:2

Following catalog is the excerpt of alarm setter SD series catalog.
product type catalog
alarm setter(digital % scale)

SDD-( )-105( )-( )( )

e_SD_SDD_Rev0.pdf
SIZE:168KB
total page no.:2
alarm setter(actual scale)

SD-( )-105( )-( )( )

e_SD_SD_Rev0.pdf
SIZE:167KB
total page no.:2
alarm setter(LCD)

SDLC-105-( )( )

e_SD_SDLC_Rev0.pdf
SIZE:209KB
total page no.:2
SDLC-105A-( )( )( )( ) SDLC-105A_Rev0.pdf
SIZE:543KB
total page no.:4
deviation alarm setter(LCD)

SDDV-105-( )( )

e_SD_SDDV_Rev0.pdf
SIZE:148KB
total page no.:2
AC voltage alarm setter

SVD-( )-105( )-( )( )

e_SD_SVD_Rev0.pdf
SIZE:186KB
total page no.:2
